Umbrella House Facade Restoration

Restoring a Paul Rudolph icon of mid-century modern design

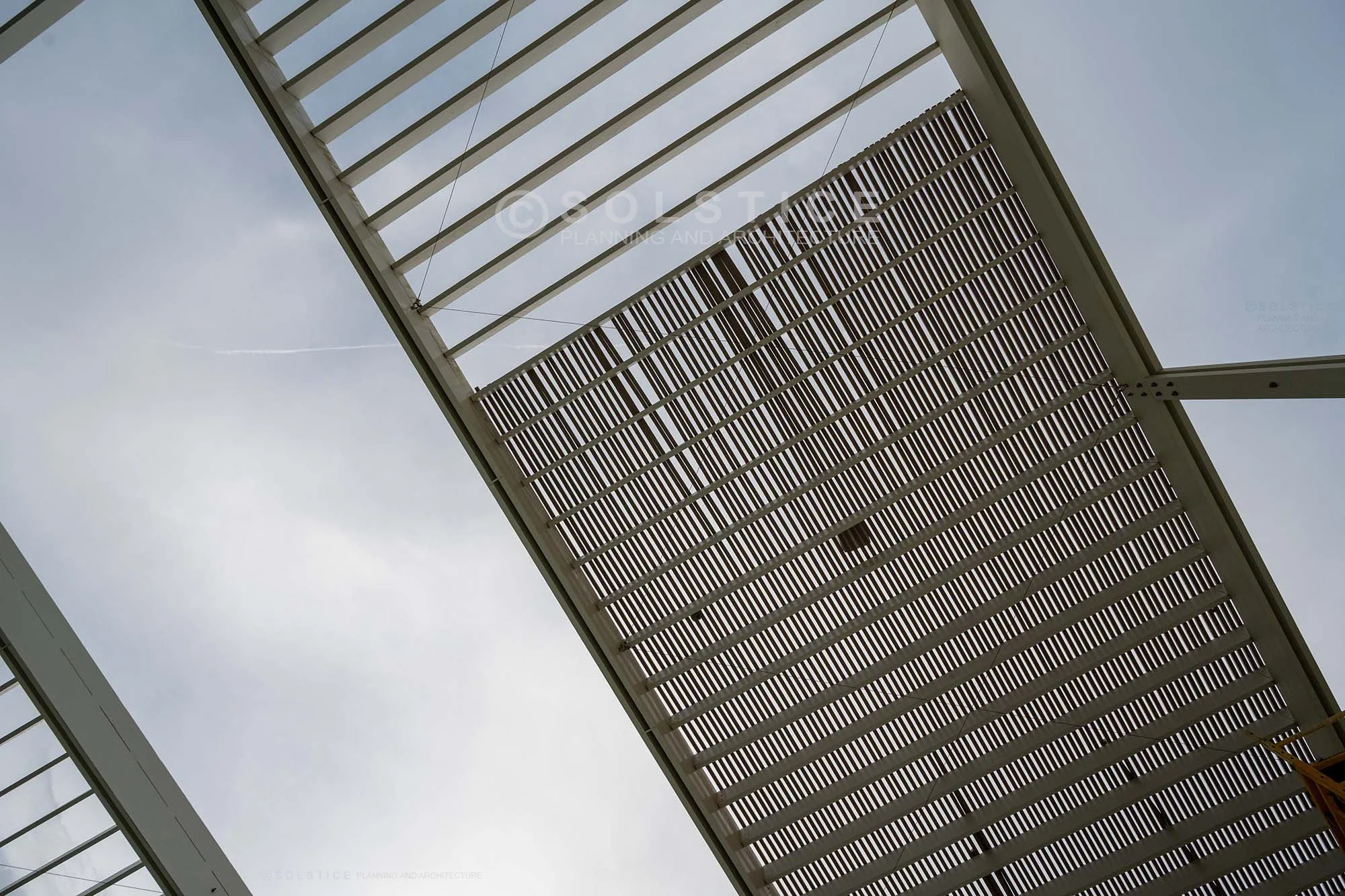

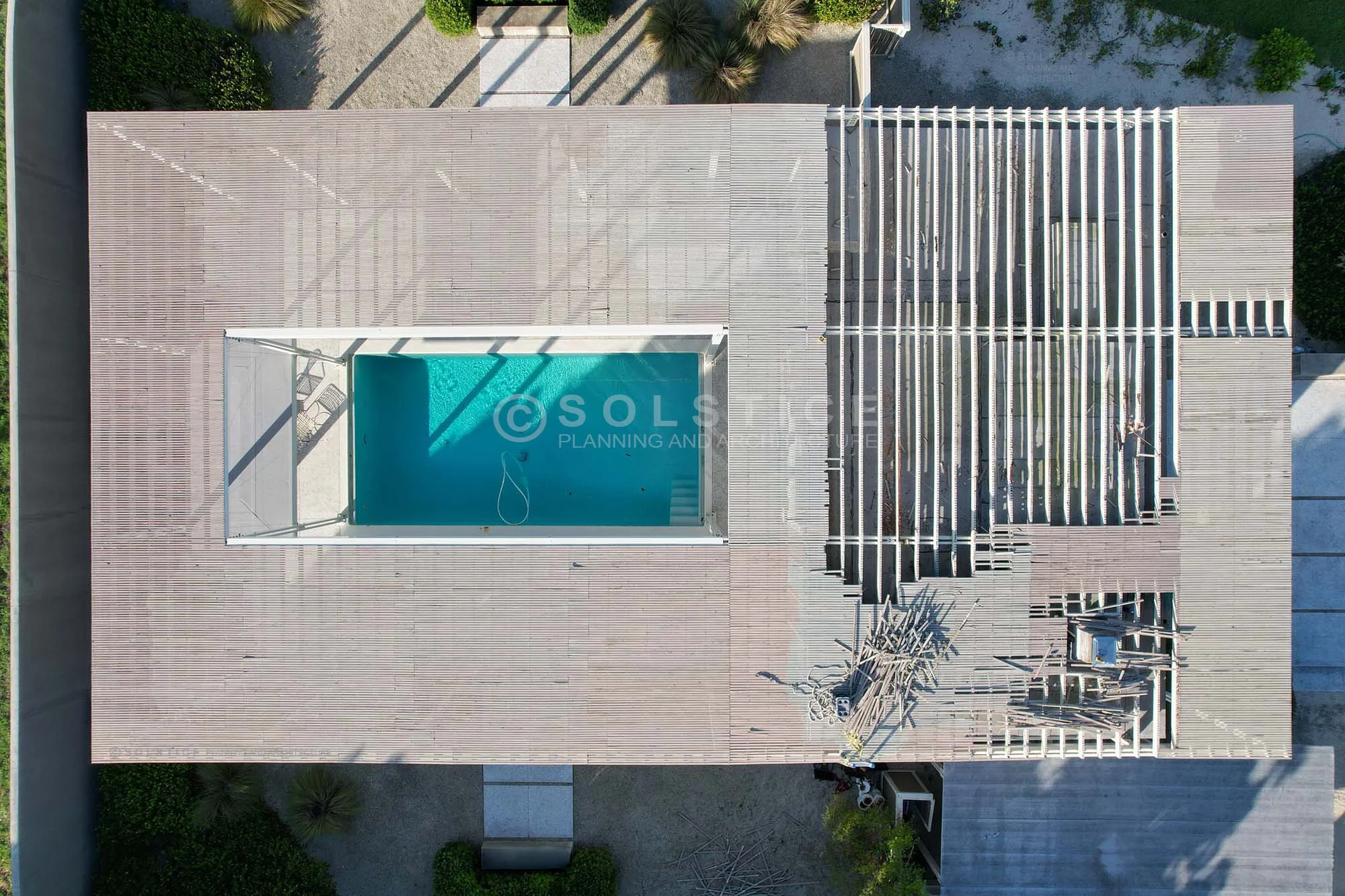

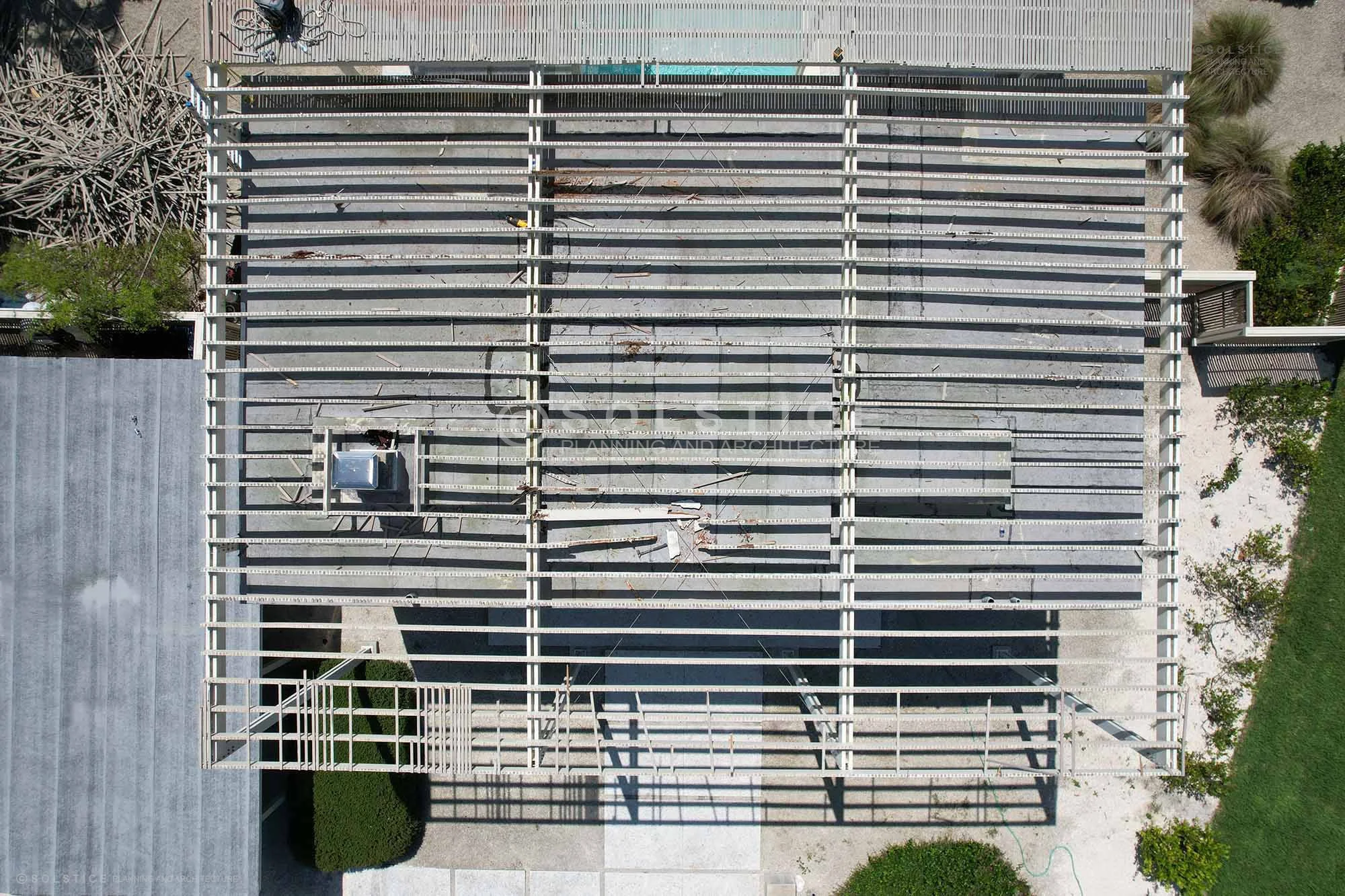

The Umbrella House was designed by architect Paul Rudolph and was built in 1953. It is a renowned example of the Sarasota School of Architecture and considered “one of the most remarkable homes of the twentieth century”.

NOTABLE
Merit Award, Historic Preservation & Restoration, AIA Florida

CLIENT
Private Residence

LOCATION
Lido Shores, Sarasota, Florida

PHOTOGRAPHY
Dylan Jon Wade Cox

“The goal was to make our hand in it disappear completely.”

— Jonathan Parks

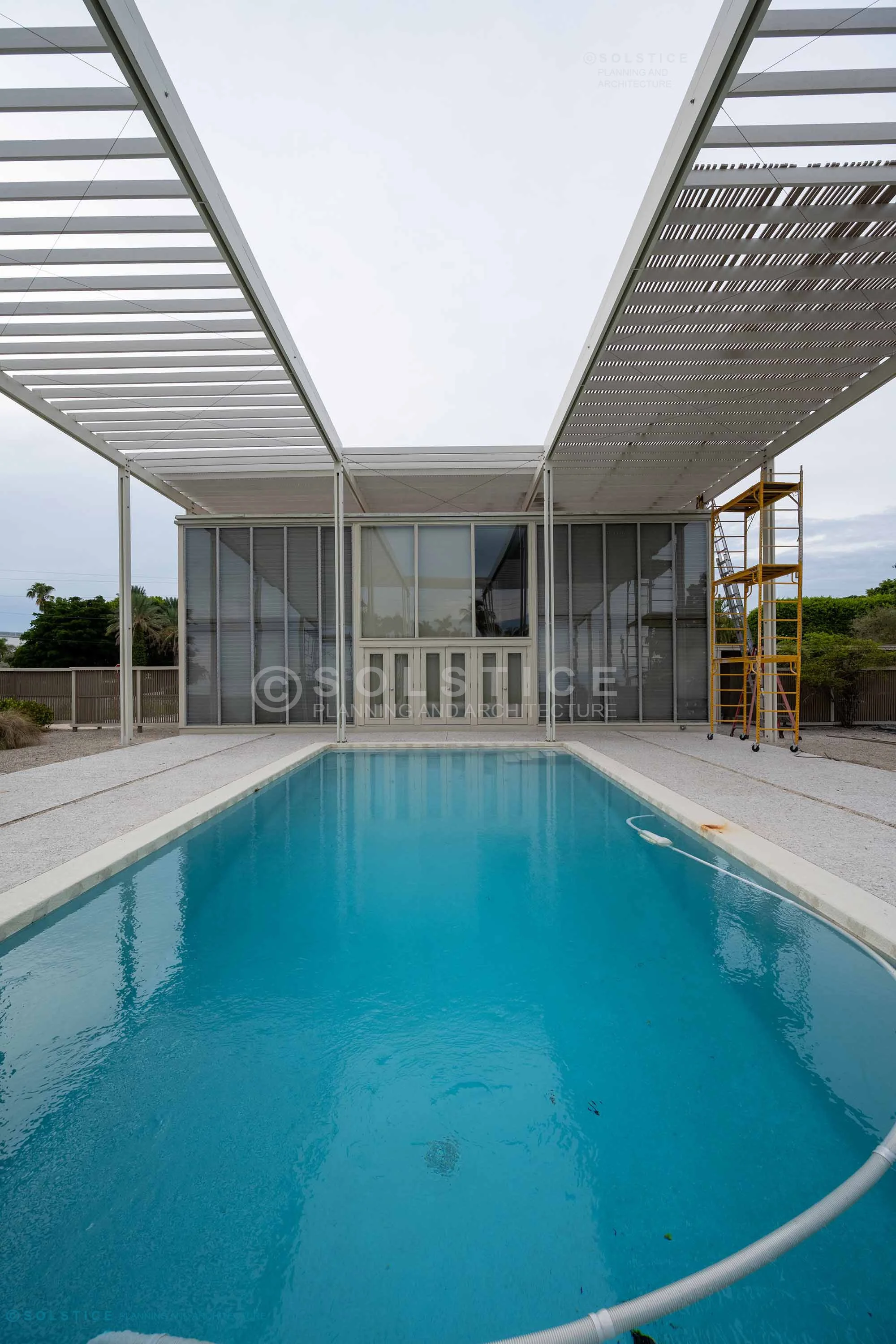

BEFORE - This wall of mostly glass was dependent on posts and beams designed in an “H” shape. The loading and hingepoint are such that to make the span work, there were a series of 2 x 6’s positioned for the windload instead of the deadload. As a result, over the years, the wood had wicked in water that couldn’t drain properly and was completely rotting away.

A STRUCTURAL EMERGENCY
During quarterly routine paint touch up on the exterior of the house, it was discovered that all of the central wood and steel framing on the rear façade had completely rotted through. This area is responsible for the wall’s structural integrity, and it was clear that the entire pool facing glass façade of the house was in imminent danger of collapse. The original loading and framing hinge point are such that to make the span work, there were a series of 2 x 6’s positioned horizontally for the wind load instead of the deadload. The result of this unusual structural design created a hidden flaw, resulting in water entering the framing of the façade with no way to escape.

AN EMERGENCY REPAIR
The Architect worked closely with the City of Sarasota to obtain an emergency permit to begin construction immediately. Construction needed to take place during hurricane season and it was therefore important to protect the structure and maintain the dehumidification within the wood framed historic structure, since the repairs would take a number of weeks.

THE SOLUTION
To protect the historic home during construction, the solution was to build a temporary structural wall – creating a ‘cocoon’ on the inside. To rebuild the exterior wall, the architect drew up a dozen potential solutions when the ideal solution was to reimagine the function of the detail by reimagining the original glass stop to the interior rather than the exterior. This would forever eliminate the potential for leaks. The new glass stop was constructed from aluminum bar stock while adding additional stiffness and uplift to engineered wood column.

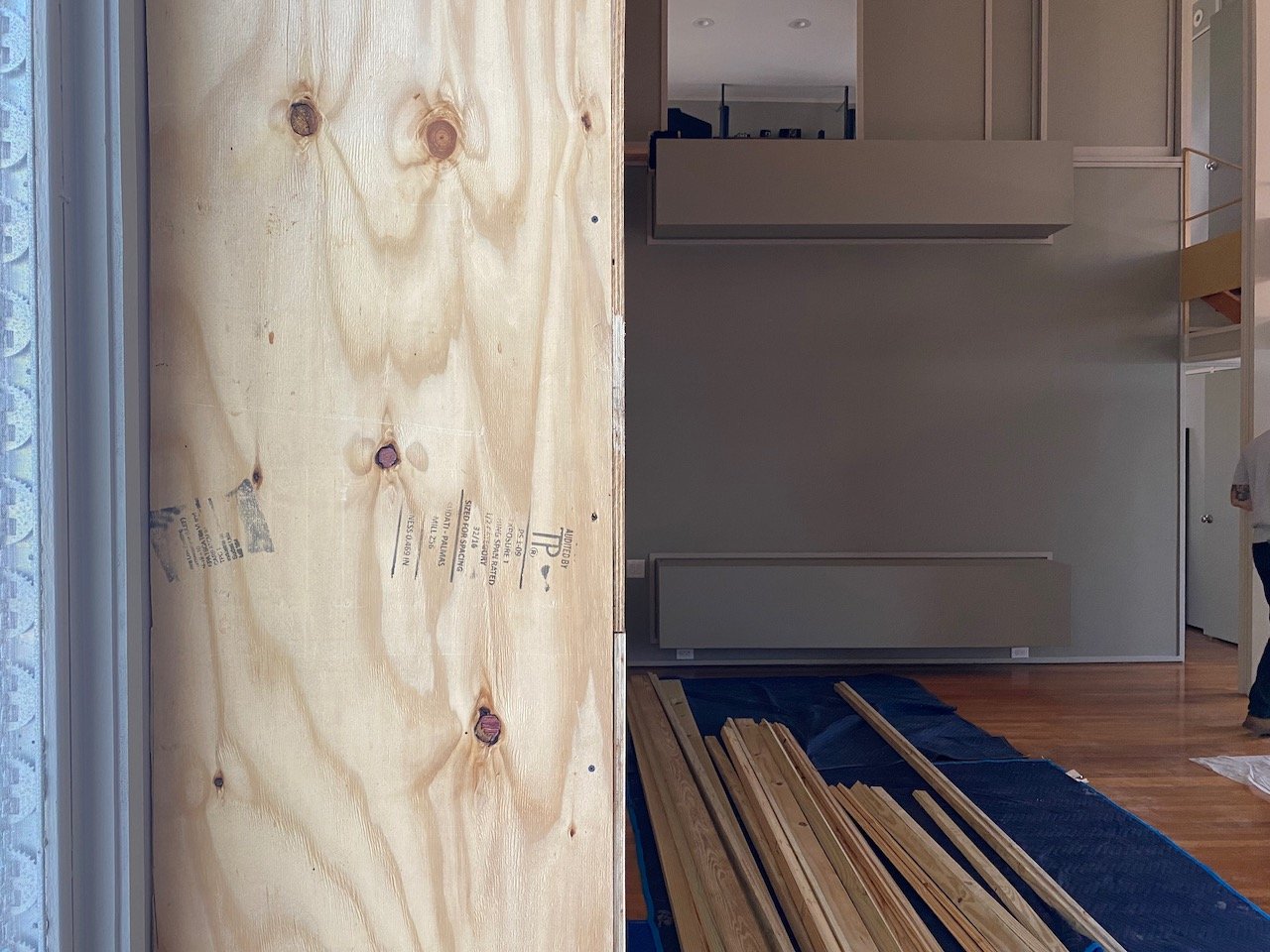

View of the temporary wall during construction

Paul Rudolph Sarasota Home Construction Dusk.jpg

Umbrella House Paul Rudolph Facade renovation architect Jonathan Parks.JPG

Umbrella House RenovationTemporary Wall.jpeg

Jonathan Parks and Christopher Chudy from SOLSTICE

The architect and contractor worked together to exactly match all historic wood window profiles.

Umbrella House renovation replacing header.JPG

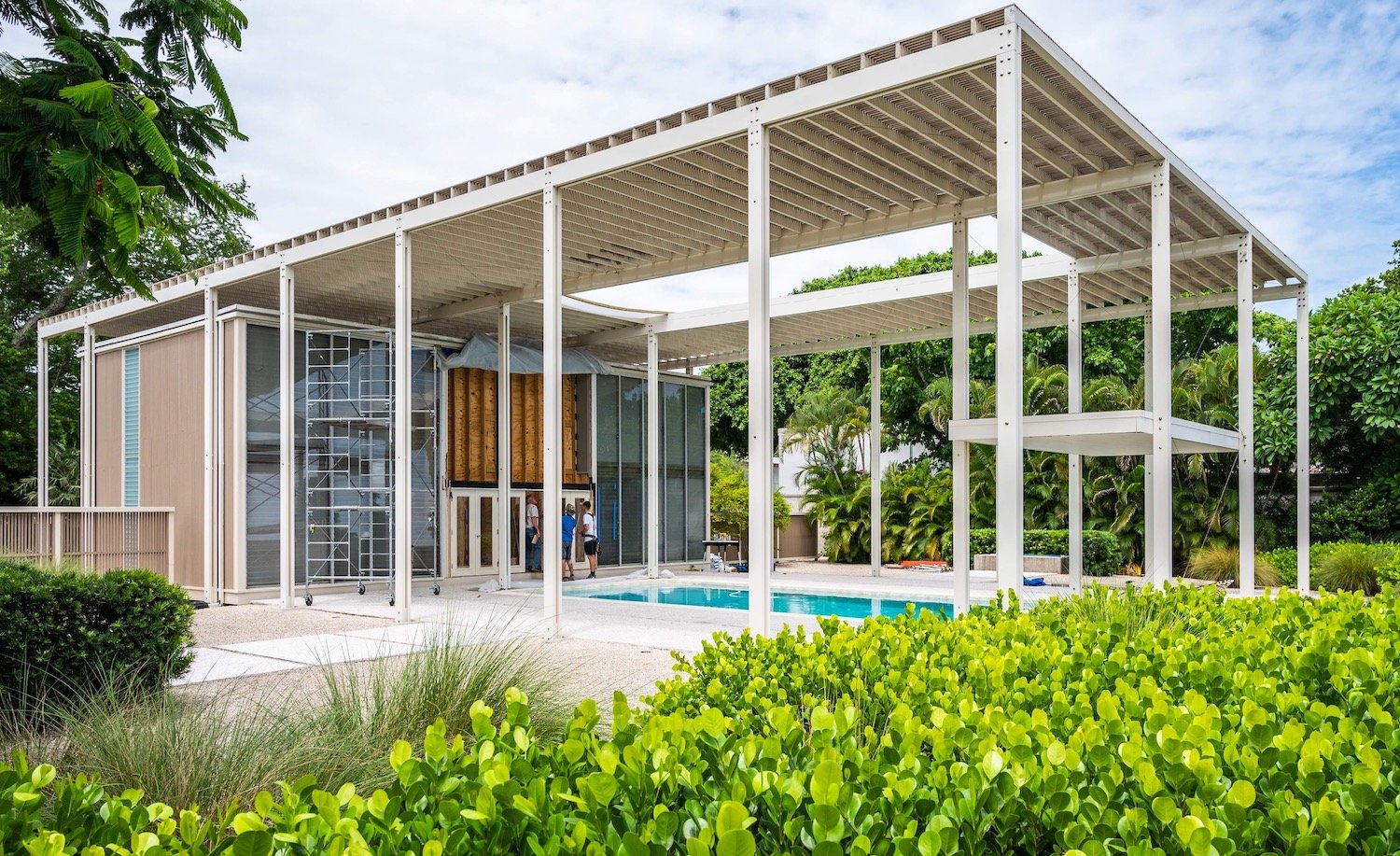

Umbrella House Renovation under construction rear facade.jpeg

Umbrella House Renovation upper windows tempered glass.jpeg

Umbrella House Renovation construction.jpeg

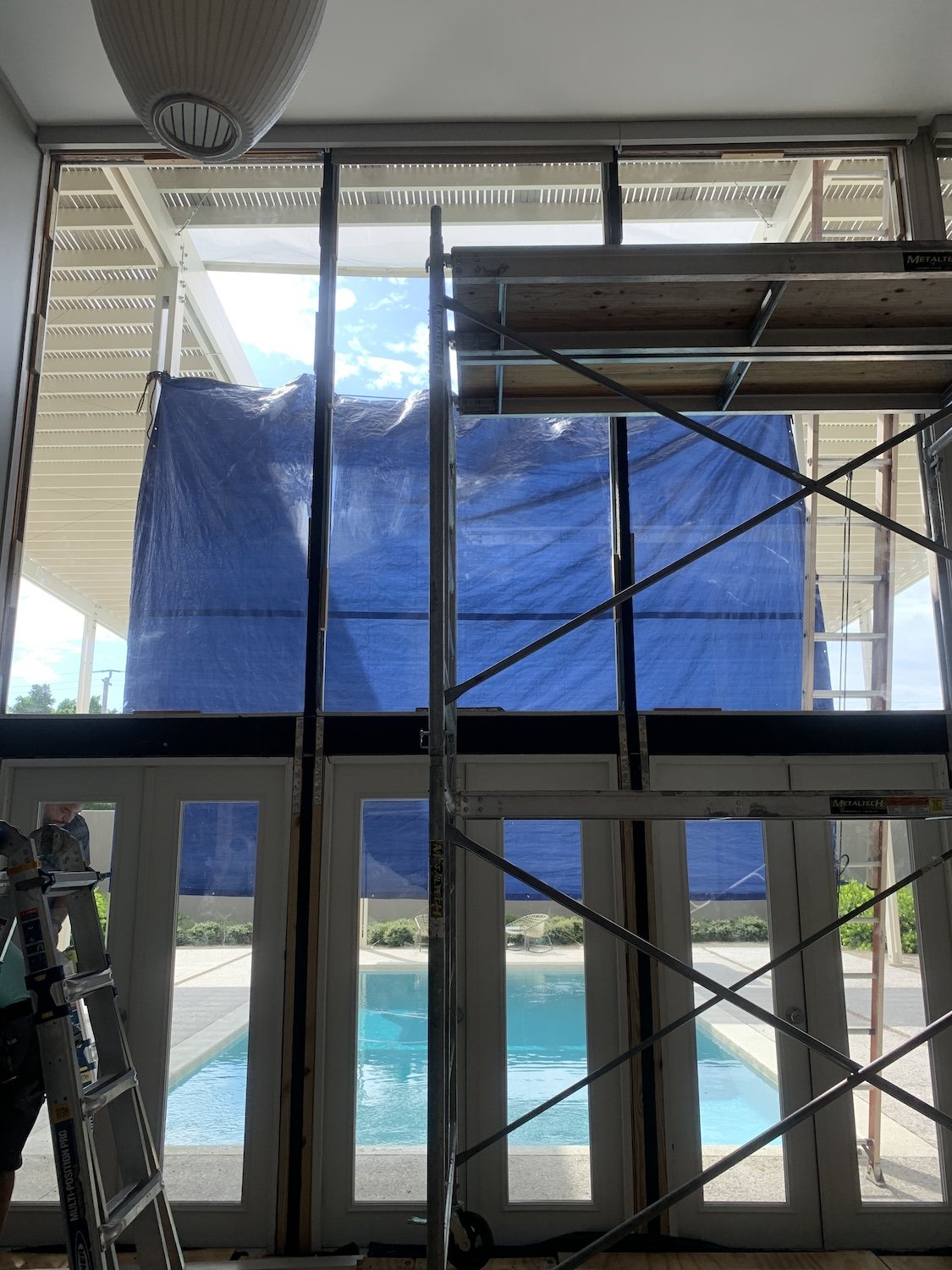

Umbrella House Renovation new glass.jpeg

The resulting scheme saved all the original materials on the outside wall, while the inside is brand new, engineered modern materials that are perfectly designed to fit within the home’s original profile. Window stops of aluminum bar were placed on the inside. Both the verticals and horizontals are now engineered lumber and the glass was updated from plate glass – which can be very dangerous when it breaks – to tempered glass. All the existing doors and exterior trim were saved and it was all “put back as if we had never been there”.

The result is a sensitive renovation that, to the eye, exactly matches Rudolph’s original design while the hand of the new architect disappears completely.

Watch this 3 minute recap on the restoration with Jonathan Parks and Christopher Chudy.
